How to install Custom Recovery Image(ClockWorkMod) in Samsung Galaxy Fit S5670

Custom recovery image on Samsung galaxy fit s5670

 Samsung galaxy fit s5670 users can now breathe easy as in the due course of this article we will be checking out on how to install the custom recovery image. The need for the installation of this recovery image is to install custom ROMs and to install the latest ICS Android 4.0 firmware in the form of Cyanogen Mod 9 firmware.

 Disclaimer: We mobtechzz should not be responsible in any manner if anything happens to your device as which is a very unlikely case if you follow each and every instruction carefully given in this article.

NOTE:

• In the process of custom recovery installation, the warranty will get void. To get back the warranty, you need to note down the current firmware you are on so that you can then install the same for regaining the lost warranty.
• To un root, you can apply with any of the stock firmwares. Once the device is un rooted, the warranty gets regained.

Prime Requisites :

• Take Backup of your Android phone contacts, your apps and your accounts associated with it.
• Download the required files.
• Make sure Your Android device is at least 50% charged so that it can’t get switched off.
• Make sure that data cable is properly connected.
• Disable Anti virus and other apps.

 So, assuming that you have followed all the instructions mentioned above you now need to proceed further for procedure.

Steps To Install custom recovery image On Samsung Galaxy FIT S5670

Step 1: Enable the USB Debugging in your device from the path

               “Settings > Applications >Development > USB debugging "

Step 2: Download HERE beni_cwm-5_v2.tar and  ODIN-BENI OPS

Step 3: Match the extracted files from the below shown screen capture, even if single file is missing then you need to check with the extraction or download process.

 Step 4: From extracted files, open Odin executable file and turn Off the phone so as to enter the device in the download mode.

 Step 5: Now, you need to enter the by holding the Volume Down button + the Home key button (the middle button). While holding these both buttons, you need to switch ON your device. Just in case if the device boots in the normal mode then you will have to again try the process of entering into the download mode.

 Step 6: After entering the phone in the download mode, connect the device to the computer while keeping the Odin opened. Within a minute, the ID : COM section will turn yellow which will mean that all the drivers have been successfully installed and you are now ready to proceed to the next step.

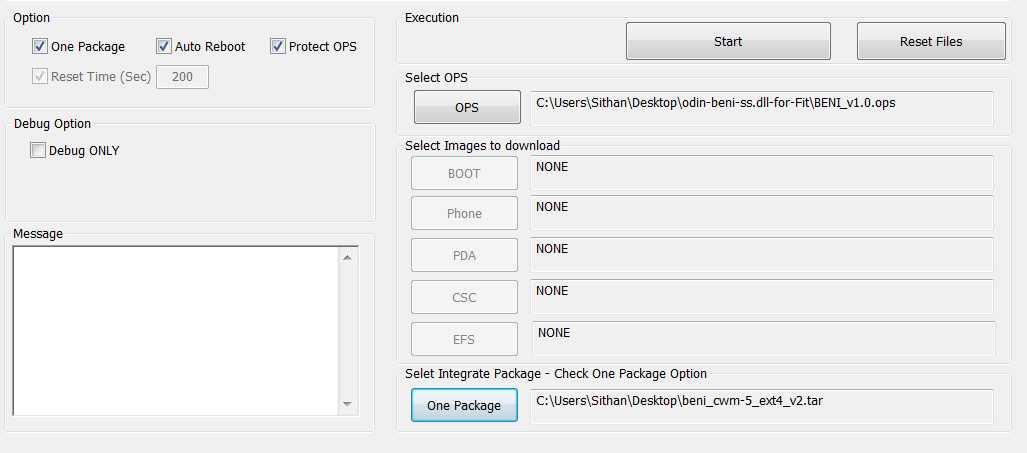

Step 7: Click on the “OPS” option in the Odin to select the below mentioned file, tick on “One Package” option and then select the One Package option as mentioned below

• OPS – BENI_v1.0.ops
• One Package – beni_cwm-5_ext4_v2

Step 8: Click start and wait for few minutes it gets restarted

NOW you have successfully installed custom recovery image you can check it by booting into Recovery mode there will be a change in the recovery mode.(The recovery mode can be entered by holding the Power button + the Home key button (the middle button). While holding these both buttons.)
